18 units of completely Re-manufactured

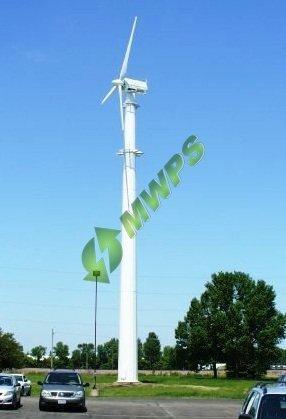

Windmatic 17S – 95KW (60Hz) Wind Turbines For Sale
4 units Immediately Available
Windmatic 17S – 95KW (60Hz)
-
- Cut-in wind speed 3.5 m/s
-
- Wind speed for max. power 15 m/s
-
- Cut-out wind speed 25 m/s
-
- Design wind speed 50 m/s
-
- Max. electric power 95kW
TURBINE
-
- Type 3 blades, stall regulated
- Diameter 17m
- Direction of rotation Counter clockwise
- RPM 41-42/58-59 rpm
- Mass (inc.1 hub) 1240kg
BLADES
-
- Beam material reinforced fiberglass
- Length 8,20m
- Rotor Diameter 16m
AERODYNAMIC BRAKES
- Type Spoilers
- Releasing Centrifugally

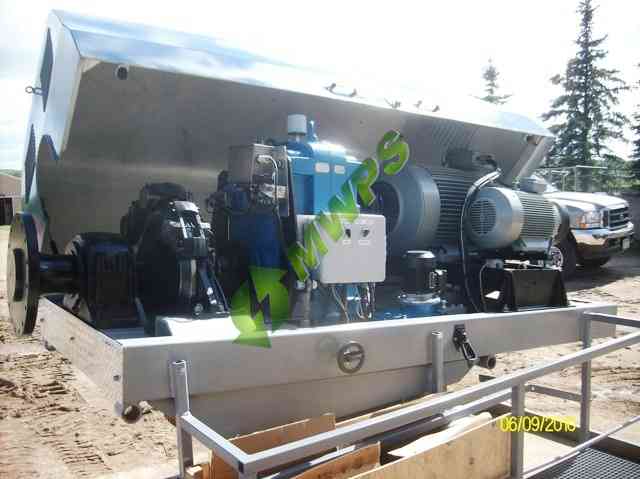

NACELLE
- Cover material Aluminium
- Chassis material Galvanised Steel
- Mass (excl. turbine) 4100kg
OPERATION BRAKE
- Type Disc Brake
- Location Turbine Shaft
- Operation Hydraulic
GEARBOX
-
- Type Oil lubricated, hollow shaft
GENERATORS
- Type Asynchronous with squirrel cage
YAWING SYSTEM
- Type Yaw gear wheel
Following tower options available:
- 100′ Lattice Tower
- 120′ Lattice Tower
- 140′ Lattice Tower
- 100′ Monopole Tower
- 115′ Monopole Tower
Please ask for quotation of above tower heights.
PLEASE NOTE
- A letter Of Intent is required to arrange a viewing
- No time wasters or tyre kickers, please!
