BONUS 450 – B600/37 – 450kW
Easy de-rate to 250kW
Bonus 450 – B600/37 – 450kW
- Rated output: 450kW / 50Hz
- Hub Height: 35m (three sections)
- Rotor Diameter: 37m
- Year of build: 1995
- Qty available: 11
- Full manufacturers specifications, users guide and service manuals available
Operating Data:
- Power-on wind speed:4.5 m/s*
- Power-off wind speed: 28 m/s
- Max. wind speed: 57 m/s
Rotor:
- No. of rotor blades: 3
- Diameter: 37 m
- Rotor area: 962 m2
- Rotor speed: 35 min-1
- Power regulation: Constant pitch angle with stall-controls

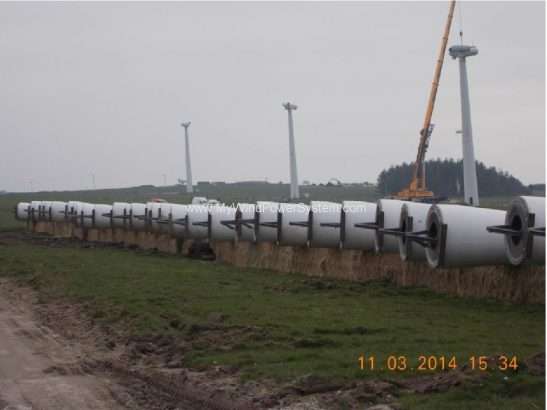

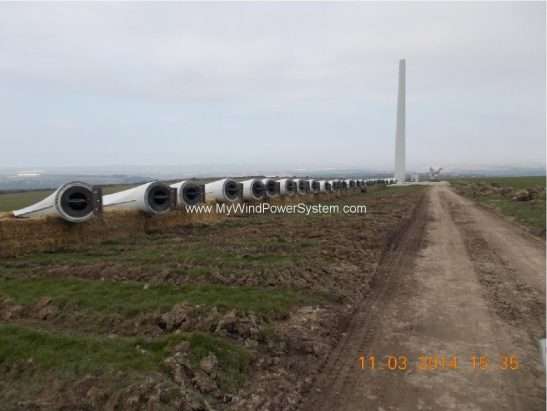

- Rotor blade: LM17 – Cantilevered
- Design: Glass fiber-reinforced
- Material: Polyester
- Profile chord at the blade root: 1.35 m
- Profile chord at the blade tip: 0.48 m
Electrical System:
- Power factor: 0.96
- Generator
- Type: Induction generator
- Rated output: 450 kW
- Voltage- phases: 480 D – 3 phases
Transmission:
- Gear ratio: 1: 43
- Design: Three-stage
- 1st stage: Planetary gear
- 2nd and 3rd stages: spur gear, helical-cut
- Generator coupling: Elastics coupling
- Shaft coupling: Elastics coupling
Brake system:
- Service brake: Aerodynamic braking
- Hydraulic actuation through the control system
- Locking brake: Disc brake, hydraulically actuated, can only be actuated manually
- Emergency brake: Initiation of aerodynamic brakes by the over-pressure valve
Download:
- Bonus-450 – B600/37 Technical Specifications.pdf
- Bonus-450 – B600/37 Power Curve.pdf
- Bonus – B600/37 – 450kW Weight Schedule.pdf
MWPS Global can assist in dismantling, worldwide shipping & transportation as well as full refurbishing and upgrade services at highly competitive prices.
MWPS Global works with highly skilled re-manufacturers, refurbishers, and machinists. This ensures the re-manufactured equipment is properly restored to the original manufacturers’ specifications and is refurbished according to our high standards. Refurbished wind turbines offered by MWPS Limited are completely disassembled and thoroughly inspected and cleaned. Our highly experienced wind turbine refurbishment affiliates evaluate the condition of the reconditioned wind turbine and replace all wear parts. The main moving components will be reconditioned to new or better-than-new standards. The controls, gearbox, hub, generator, and hydraulic system are all thoroughly reconditioned and are either restored or replaced. All refurbished wind turbines come with a full technical report of the reconditioning work undertaken.
- Have one to sell? Sell it yourself
- Our current Sales List –click here!
PLEASE NOTE
- A letter Of Intent is required to arrange a viewing
- No time wasters or tyre kickers, please!
