WINDMATIC 17S – 95KW
20 x USED WIND TURBINES FOR SALE
These WINDMATIC 17S are now sold
TECHNICAL SPECIFICATIONS
WINDMATIC 17S
CONNECTION TO MAINS
- Voltage 480V
- Frequency 60Hz

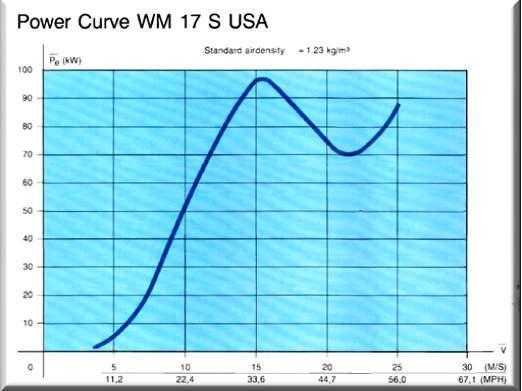

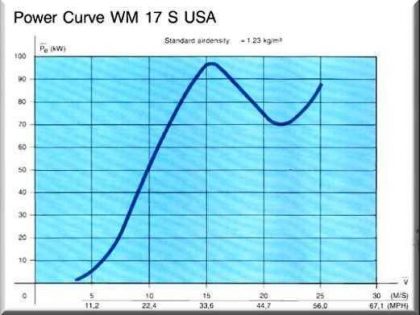

PERFORMANCE
- Cut-in wind speed 3.5 m/s
- Wind speed for max. power 15 m/s
- Cut-out wind speed 25 m/s
- Design wind speed 50 m/s
- Max. electric power 95kW
- Type 3 blades, stall regulated
- Diameter 17m
- The direction of rotation Counterclockwise
- RPM 41-42/58-59 rpm
- Mass (inc1. hub) 1240kg
BLADES
- Beam material reinforced fibreglass
- Length 8
- 8.20m
AERODYNAMIC BRAKES
- Type Spoilers
- Releasing Centrifugally

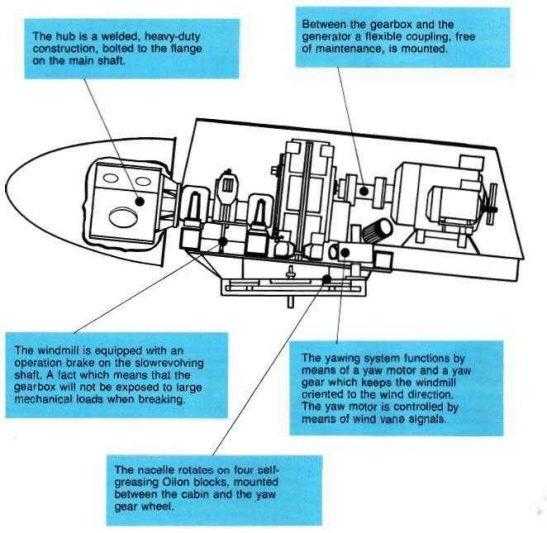

GEARBOX
- Type Oil lubricated, hollow shaft
GENERATORS
- Type Asynchronous with squirrel cage
TOWER
- Number of sections 2
- Height 18m or 24m
Download Windmatic 17S – Brochure (Tubular Tower Version) and detailed PDF for the lattice tower:
MWPS Global can assist in worldwide shipping & transportation as well as full refurbishing and upgrade services at highly competitive prices.
MWPS Global works with highly skilled re-manufacturers, refurbishers, and machinists if upgrades or refurbishing is requested. This ensures the re-manufactured equipment is properly restored to the original manufacturers’ specifications and is refurbished according to our high standards. Refurbished wind turbines offered by MWPS Limited are completely disassembled and thoroughly inspected and cleaned. Our highly experienced wind turbine refurbishment affiliates evaluate the condition of the reconditioned wind turbine and replace all wear parts. The main moving components will be reconditioned to new or better than new standards. The controls, gearbox, hub, generator, hydraulic system are all thoroughly reconditioned and are either restored or replaced. All refurbished wind turbines come with a full technical report of the reconditioning work undertaken.
PLEASE NOTE
- A letter Of Intent is required to arrange a viewing
- No time wasters or tyre kickers, please!
