Up to 94 x BRAND NEW
Gamesa G87 – 2.0MW T78
SOLD
On behalf of one of our affiliates, we are offering:
94 x GAMESA G87 2.0MW T78m – 50 Hz
- 75 units immediately available
- Type: G87 2.0MW
- Classification: Class IIA/WZII.
- Frequency: 50 Hz
- Tower height: 78m
- Nominal voltage: 20 kV
- Switchgear included
- Transformer included
ROTOR
- Diameter 87 m
- Swept area 5,945 m2
- The rotational speed of 9.0 – 19.0 rpm
- Rotational direction Clock Wise (front view)
- Weight (incl. Hub) Approx. 37 T
- The top head mass is Approx. Diameter 87 m
- Swept area 5,945 m2
- The rotational speed of 9.0 – 19.0 rpm
- Rotational direction Clock Wise (front view)
- Weight (incl. Hub) Approx. 37 T
- The top head mass is Approx. 107 T
BLADES
- Number of blades 3
- Length 42.5 m
- Airfoils DU (Delft University) + FFA-W3
- Material Preimpregnated epoxy glass fiber +
- Carbon fiber
- Total blade weight 6,150 kg

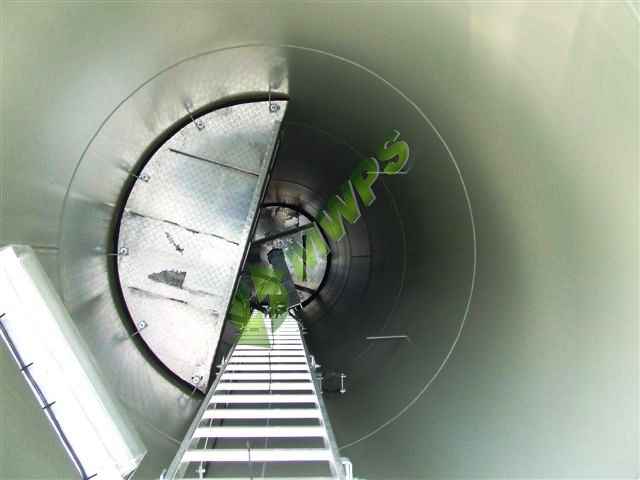

TUBULAR TOWER
- 4 sections – 78m -203 T
GEARBOX
- Type 1 planetary stage
- 2 parallel stages
- Ratio 1:100.5 (50 Hz)
- 1:120.5 (60 Hz)
- Cooling Oil pump with oil cooler
- Oil heater 2.2 kW
GENERATOR 2.0mW
- Type Doubly-fed machine
- Rated power 2.0 MW
- Voltage 690 V ac
- Frequency 50 Hz / 60 Hz
- Protection class IP 54
- Number of poles 4
- Rotational speed 900:1,900 rpm (rated 1,680 rpm) (50 Hz)
- 1,080:2,280 rpm (rated 2,016 rpm) (60 Hz)
- Rated Stator Current 1,500 A @ 690 V
- Power factor (standard) 0.98 CAP – 0.96 IND at partial loads and 1 at nominal power.
- Power factor (optional) 0.95 CAP – 0.95 IND throughout the power range
- 75 units immediately available
- Type: G87 2.0MW
- Tower height: 78m
- Switchgear included
- Transformer included
