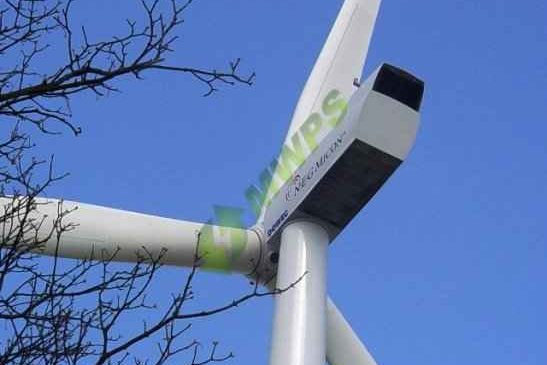

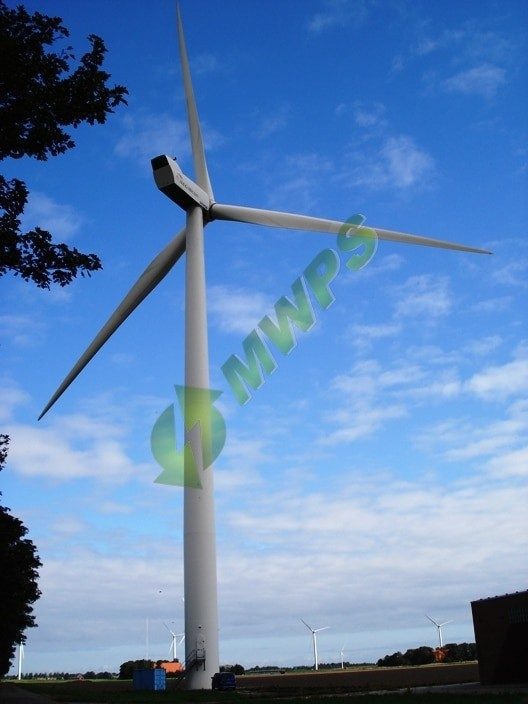

NEG Micon NM92 – 2.75mW Wind Turbine
Full-service history available NEG MICON NM92
OPERATING DATA NM92
- Nominal output of 2750 kW
- Output regulation PRVS
- Nominal wind speed 14 m/sec
- Cut-in at 4 m/sec
- Cut-out at 25 m/sec
Rotor
- Rotor diameter 92 m
- Swept area 6648 m2
- Number of blades 3
- Rotor revolutions 15.6 rpm
Drive train
- Gear type 3-step planetary/helical hybrid
- Gear ratio 1:70.65
- The main shaft Forged shaft and flange
- Main bearing Spherical roller bearing
- Cooling Oil cooling with pump
Generator
- Type Double-fed
- Asynchronous generator
- Voltage – stator 960 V
- Voltage – rotor 690 V
- Nominal frequency of 50 Hz
- Rated power 2750 kW
- Cooling Water
Yaw system
- Type Double ball race with
- Internal gearing
- Yaw brakes 5 hydraulic brake calipers
- Yaw motor/gears 5 electrically driven
- Planetary gears
Tower
- Type Conical steel tower
- Painted
- Hub height 70 m or depending on the location
Control
- Type Computer controlled
- Cut-in system Soft with frequency
- Converters
- Remote monitoring Modem
Lightning protection
- Superstructure to most recent international norms.
MWPS World can assist in worldwide shipping & transportation as well as arranging full refurbishment and upgrade services at highly competitive prices.
MWPS World works with highly skilled remanufacturers, refurbishers, and machinists. This ensures the re-manufactured equipment is properly restored to the original manufacturers’ specifications and is refurbished according to our high standards. Refurbished wind turbines offered by MWPS Limited are completely disassembled and thoroughly inspected and cleaned. Our highly experienced wind turbine refurbishment affiliates evaluate the condition of the reconditioned wind turbine and replace all worn parts. The main moving components will be reconditioned to new or better-than-new standards. The controls, gearbox, hub, generator, and hydraulic system are all thoroughly reconditioned and are either restored or replaced. All refurbished wind turbines come with a back-to-base warranty on all replaced and reconditioned parts incl. workmanship and detailed technical reconditioning report.
PLEASE NOTE
- A letter Of Intent is required to arrange a viewing
- No time wasters or tyre kickers, please!
